Japanese roof design traditional clay material grey color Chinese
roof tiles
Chinese roof tile is fired from clay material, the color is
blue-gray. Clay is the product of long-term
weathering of certain aluminosilicate minerals and is named after
its strong viscosity. Chinese clay
roof tile is a building material for roofing, with an arched shape.
Flat or semi-cylindrical, etc., the clay
tile is suitable for various structures such as concrete structure,
steel structure, wood structure,
brick-wood mixed structure, etc. kinds of new sloping roofs and old
buildings are changed to sloping
roofs, and the applicable slope is 15-90 degrees. The temperature
is -50℃ to 70℃, the Chinese clay
roof tile gives people a simple and elegant, calm, simple and quiet
beauty. In recent years, it has become
one of the products highly recommended by designers.
Production description
| Name | Chinese clay roof tile |
| Raw Material | Clay |
| Surface | matt and unglazed |
| Water Absorption | around 6%-8% |
| Compression | 1500N |
| Frost Resistance | Below 30℃ |
| Durable Warranty | 50 years |
| Thickness/Tolerance | 10mm/2mm |
| Size | 180*180mm |
| Process | moulding-drying-sintering |
| Features | 1. authentic antique clay tiles |
| 2. traditional handmade crafmanship |
| 3.30 years production experiences |
| 4.factory sale directly ,low price |
| Application | For garden pavilion, Buddhist Temple, Mosque, pagoda, gateway,
hotel ,restaurant and other roofs in Chinese style |
| Packing | 80pcs = 1m³ = 50kg, 10 m³ = 1 case, 24 cases = 20 feet container |
| Breakage Rate | Around 1% |
Chinese roof tiles details images

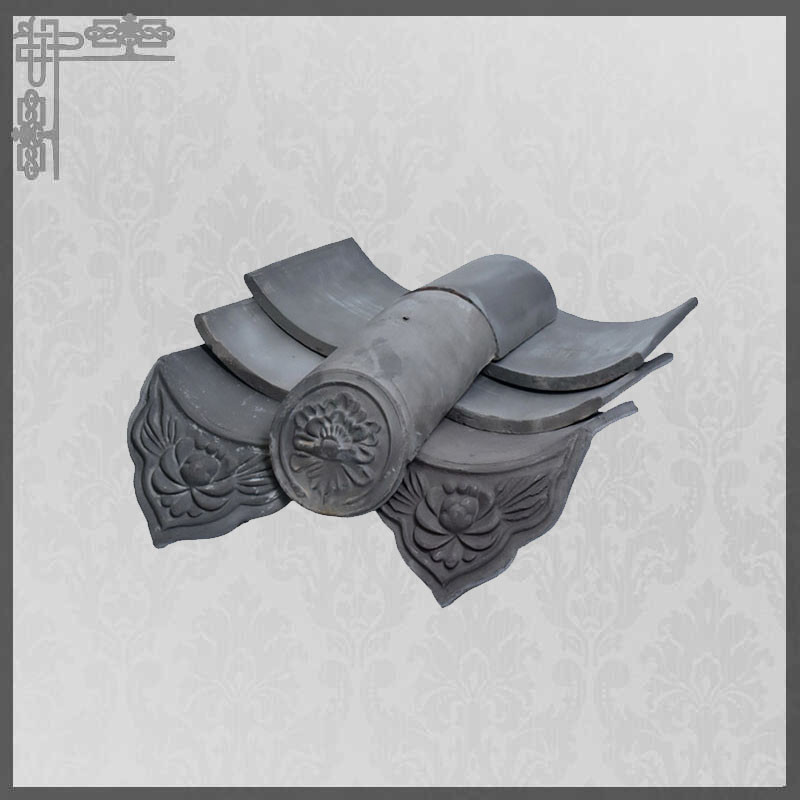

Chinese roof tiles need several different type roof tiles to compose one complete roof
We call this pan tile, it also can be named cover tile, about
33pcs/sqm
We call this eave tile, 5pcs/m, along the roof eave
We call this flat tile, it also can be named bottom tile, about
50pcs/sqm

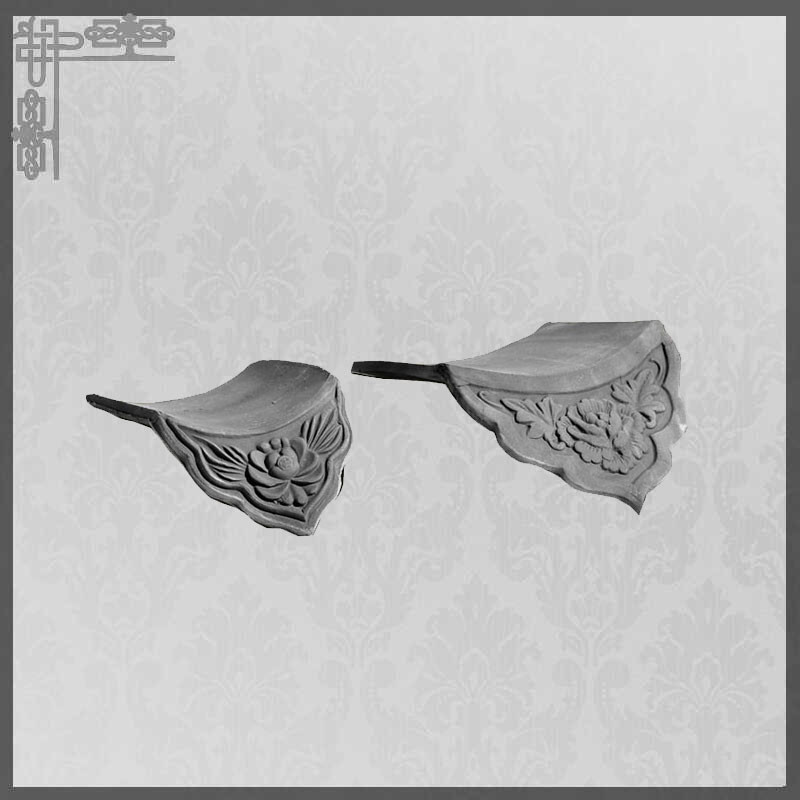

We call this drip tile, 5pcs/m, along the roof eave
Application Projects
Chinese clay roof tiles for temple

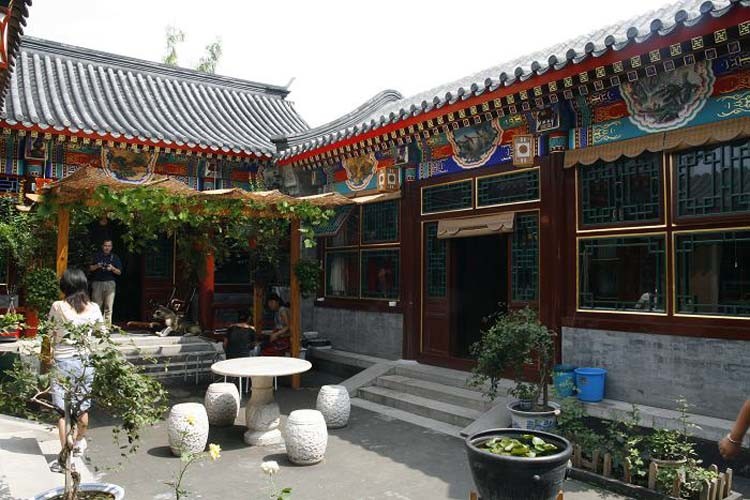

Chinese clay roof tiles for Siheyuan
Chinese clay roof tiles for resort hotel
Chinese clay roof tiles for garden
Company intruduce
Here's real manufacturer in China,choose us,you will get the top
quality,
competitive price and considerate service.
Our Company,Luoyang Dannuo Garden& Building Material Co.,Ltd established in 1982,which
is a professional manufacturer and exporter that specialized in
antique Chinese roof tiles
and Japanese roof tiles developmeng and production. Our main
products are traditional
glazed roof tiles,unglazed grey roof tiles,S type tiles,fish scale tiles
and the matched whole
set accessories.
In addition,Roof tiles’ colors and sizes could be made as your
requirements and OEM service
is allowed.
our roof tiles prducetion process
Raw material-->mixture-->clay body-->sintering

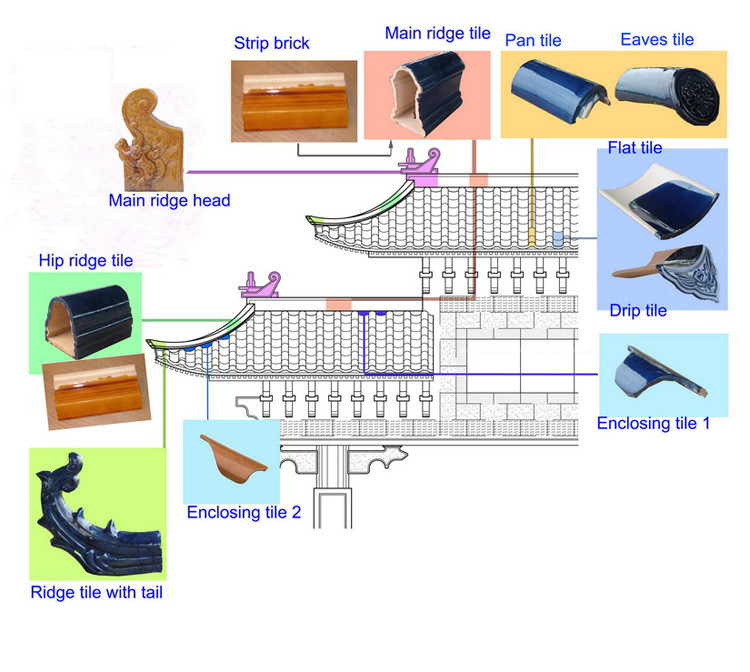

Chinese roof tiles installation position
Installation step
Step 1. sand/cement=1/3
Step 2 . wooden structure, adding waterproof material
Step 3. fix drip tile in a line, 5cm spacing
Step 4. fix flat tile following drip tile one by one, overlapping
10cm
Step 5. fill the concrete in the hollow of eaves tile
Step 6. then place the pan tile following eaves tile one by one
Our customers
Chinese style tiles are more and more popular with foreign
customers
Packing and shipping
Fumigation-free plywood case, 1000*900*900
80pcs=1sq.m.=50kgs,10sq.m.=1case,24cases for one 20feet container
