Old type traditional Chinese roof tiles for Asian gazebo
Chinese roof tiles are fired from clay, which is the product of
long-term weathering of certain
aluminosilicate minerals. It is named after its extremely strong
viscosity.
In the Jiangnan area, whether it is a residential house or a
temple, the roof is dominated by
Hewa (butterfly tile). This includes two methods of laying ash and
not laying ash. Those who
do not lay ashes put the bottom tiles directly on the rafters, and
then put the cover tiles directly
between the bottom tiles without putting any plaster in between.
Craftsmen in the capital often
call this southern dry chamotte tile, and the material used is
Chinese clay roof tile.
Product Description
| Name | Chinese roof tiles |
| Material | clay |
| Surface | matt , unglazed |
| Water absorption | less than 8% |
| Compression strength | 2000N |
| Frost resistance | -20 °c |
| Service life | 50 years |
| Colors available | dark grey |
| Sizes available | flat tile : 180*160mm , 220*200mm |
| pan tile: 150*110mm, 200*120mm |
| Production process | moulding - drying - sintering - cooling - finishing |
| Features | 1.traditional technology and handmade sculpture |
| 2.high cold resistant for adding metal material |
| 3.durable for 70 years |
| 4.only 2% water absorption |
| 5.size and pattern customized by drawing |
| Application | For garden pavilion, Buddhist Temple, Mosque, pagoda, gateway,
hotel ,restaurant and other roofs in Chinese style
|
QUALITY CONTROL
1. Preproduction samples will be a available before the production,
2. The production will be process by both machine and skilled
handmade workers,
3. The extra quantity will be ready in case of breakage
4. The products will be double check before the final packing.
AFTER SERVICE
1.installation drawing with details available
2.our engineer can guide the installation at the site if necessary.
3. if any quality problem ,we promise to provide free products to
replace.
Detailed Images
traditional Chinese roof tiles composite pattern
Flat tile ,overlap half one by one

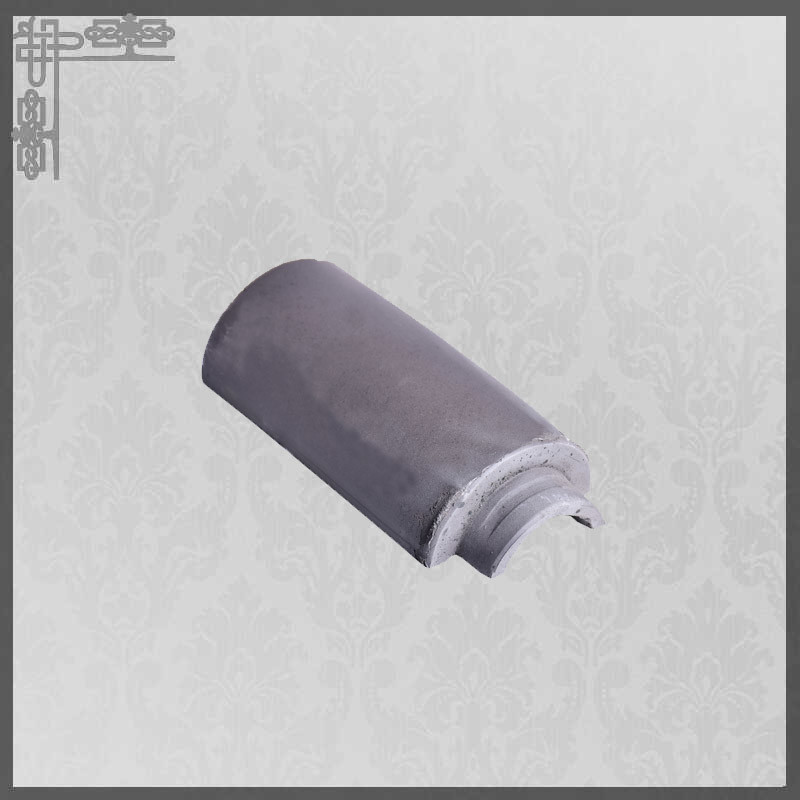

Pan tile in different size
Eaves tile ,differrent patterns for you to choose
Drip tile , there are different patterns
Chinese traditional roof tiles and accessories
Project Buildings
Chinese roof tiles are widely used for garden pavilion, Mosque, Buddhist Temple, pagoda,
gateway, hotel ,restaurant .
The installation instruction will be provided .If necessary , we
also can assign the engineer or
the skilled workers to the site.
Packaging & Shipping
safe and careful packing with plywood case, about 800PCS /case
,24cases/20ft container
Our customers are over United States , Mexico ,France, UK,Germany,
Bahrain, Turkey, Singapore, Philippines, Malaysia,Vietnam and
Australia.
Company Information
traditonal chinese roof tiles factory, we provide clay chinese roof
tiles, glazed chinese roof tiles
1.Our factory is a professional roof tiles manufacturer for over 35
years.
2. We supply many types of roof tiles including Traditional Chinese
glazed roof tiles,
unglazed clay roof tiles and Fish scale tiles
Especially Antique style roof tiles are our featured products.
3. We have experienced professionals which work for roof design
,manufacture, installation
and ancient buildings repair.
